- Size: Length:1-7m
- Place of Origin: shandong
- Brand Name: YF
- Model Number: Aluminium Pipes
- Weight: 1000.000 kg

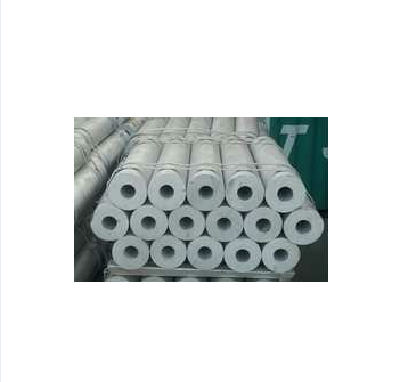

High Quality Large Diameter Aluminum Pipe
1) Products:Round pipe,square pipe,flat pipe,special designed pipe
2) Grade: 1050,3003,5052,5083,6005,6061,6063,6082 etc.
3) WT:0.3mm above
4) OD: up to 600mm
5) Length: per customer's request
6) Process: heat extrusion, welding, seamless
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
1050 | 0.25 | 0.05 | <0.40 | <0.05 | <0.05 | <0.05 | - | <0.03 |
3003 | 0.6 | - | 0.7 | 0.05 -0.20 | 1.0-1.5 | 0.10 | - | - |
5052 | 0.25 | 2.2-2.8 | 0.4 | 0.1 | 0.1 | 0.10 | 0.15-0.35 | - |
5083 | 0.4 | 4.0-4.9 | 0.4 | 0.1 | 0.4-1.0 | 0.25 | 0.05-0.25 | 0.15 |
6005 | 0.6-0.9 | 0.4-0.6 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6061 | 0.4-0.8 | 0.8-1.2 | <0.70 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.05 |
6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6082 | 0.7-1.3 | 0.6-1.2 | <0.50 | <0.1 | 0.4-1.0 | <0.2 | <0.25 | <0.10 |
Aluminum Tube/Pipe | |
1.Material: | 1000 series: 1050,1060,1070,1090,1100.etc |
2000 series: 2014,2015,2024.etc | |
3000 series: 3003,3004,3005,3014,3015.etc | |
5000 series: 5052,5083,5252,5754,5a06.etc | |
6000 series: 6080,6061,6063.etc | |
2.Thickness: | 1mm-50mm |
4.Length: | As your requirements,Max:6000mm |
5.Temper: | O,H14,H18,H24,H112,T6,T5,T4,T8.etc |
