- Size: Length:1-7m
- Place of Origin: shandong
- Brand Name: YF
- Model Number: Customized aluminum 6063 T6 round pipe
- Weight: 1000.000 kg

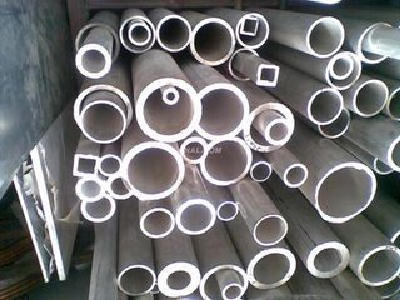

- Specifications of aluminum pipe
ALUMINUM TUBU WITH DIFFERENT ALLOY | ||||||
Specification | 1000series | 2000series | 3000series | 5000series | 6000series | 7000series |
Alloy | 1060,1070A 1100,1200 | 2A11,2024 2017,2A12 | 3003,3A21 | 5A02,5052,5A03 5A05,5A06, 5083,5086 | 6061,6063, 6A02,6082, 6005 | 7075,7A04, 7A15,7A09, 7005(7N01) |
Temper | H112,F | H112 ,F O,T | H112,F,O | O,F,H112 | H112 ,F O ,T | H112 ,F O ,T |
Outer Diameter | 8-400mm | 8-400mm | 8-400mm | 8-400mm | 8-400mm | 8-400mm |
Wall Thickness | 0.5-50mm | 0.5-50mm | 0.5-50mm | 0.5-50mm | 0.5-50mm | 0.5-50mm |
Surfa ce treat | Mill finish, Powder coating, Anodizing or Ultrasonic cleaning as your requirement | |||||
Package | factory simple package or wooden standard package as your requirement |
- Chemical compositions of aluminum pipe
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
1050 | 0.25 | 0.05 | <0.40 | <0.05 | <0.05 | <0.05 | - | <0.03 |
3003 | 0.6 | - | 0.7 | 0.05 -0.20 | 1.0-1.5 | 0.10 | - | - |
5052 | 0.25 | 2.2-2.8 | 0.4 | 0.1 | 0.1 | 0.10 | 0.15-0.35 | - |
5083 | 0.4 | 4.0-4.9 | 0.4 | 0.1 | 0.4-1.0 | 0.25 | 0.05-0.25 | 0.15 |
6005 | 0.6-0.9 | 0.4-0.6 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6061 | 0.4-0.8 | 0.8-1.2 | <0.70 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.05 |
6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6082 | 0.7-1.3 | 0.6-1.2 | <0.50 | <0.1 | 0.4-1.0 | <0.2 | <0.25 | <0.10 |
- Machinery Properties of aluminum pipe
Temper | Temper | Tensile Rm MPa | Elongation A11.3(%)≥ | Hardness HV |
Soft | M | ≥290 | ≥40 | ≤90 |
1/4 hard | Y4 | 325-410 | ≥35 | 85-115 |
1/2 hard | Y2 | 355-460 | ≥25 | 100-130 |
Hard | Y | 410-540 | ≥13 | 120-160 |
Extra hard | T | 520-620 | ≥4 | 150-190 |
Super hard | TY | ≥570 |
| ≥180 |
